Introduction

Cardiovascular disease (CVD) is a leading cause of morbidity and mortality in kidney transplant recipients (KTR). Current population-based CVD risk assessment modules have not proven useful in this specific population. The aim of the present study was to develop an explainable machine learning (ML) model to predict individualized CVD risk in KTR over time, providing interpretable survival curves as output to support clinical decision making.

Methods

Our prospective cohort included 523 KTR at the University Medical Center Groningen (The Netherlands) with a functioning graft >1 year post-transplantation, recruited between August 2001 and July 2003. The primary outcome was a composite of CVD events: cardiovascular death, non-fatal myocardial infarction and revascularization procedures (percutaneous transluminal coronary angioplasty or coronary artery bypass grafting). A random survival forest (RSF) model was trained to predict CVD event risk. Features were selected through forward selection and backward elimination. Model performance was evaluated using a 5-fold cross-validation procedure, with hyper-parameter tuning and feature selection to mitigate bias. The final results were measured by the time-dependent area under the receiver operating characteristic curve (td-AUROC) and Shapley additive explanations (SHAP) visualizations were included in the analyses for explainability.

Results

During a mean (± standard deviation) follow-up of 4.8 ± 1.3 years, 12.8% of KTR had a first CVD event. At baseline, mean age was 50.5 ± 12.2 years and 54% were males. Mean kidney function (CKD-EPI 2009 eGFR) was 47.0 ± 15.8 mL/min/1.73 m². Donors had a mean age of 37.2 ± 15.4 years and 53% were male. The RSF model achieved an average td-AUROC of 0.76 using features selected by backward elimination (Figure 1). SHAP analysis identified high sensitivity troponin T, N-terminal pro-brain natriuretic peptide, and hemoglobin A1c as the most important predictors of CVD event risk.

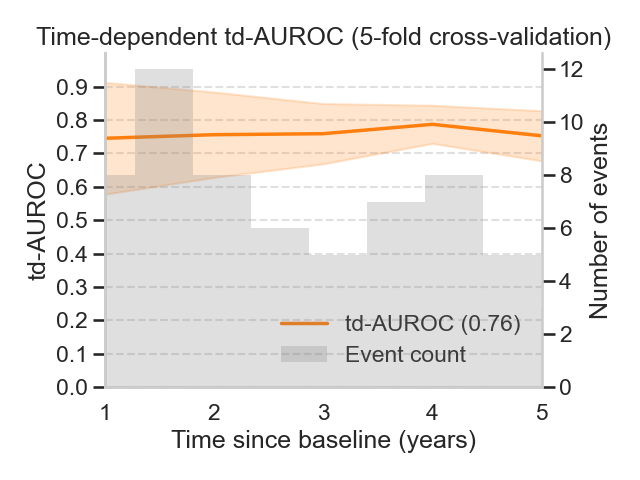

Figure 1: Time-dependent area under the ROC curve (td-AUROC) for five time-points and averaged over five validation folds, starting 1 year from baseline.

Conclusion

The newly developed explainable machine learning model accurately predicts CVD risk in KTR over 5 years from baseline. Individualized risk stratification, using models such as the one proposed, could help to guide and support early preventive interventions in KTR follow-up.
